The capacity: 3-50ton

Product Introduction:

This series product is composed of bridge, double trolley, crane and electrical equipment four main parts. Adopts fixed wire rope electric hoist as lifting mechanism, crane traveling mechanism, When use driver’s cabin operation, divided into single speed and double speed, if no specific requirements from customer, use single speed, ground control with single speed.

This series products capacity includes 5, 8, 10, 12.5,16, 20, 32t altogether seven tonnages.

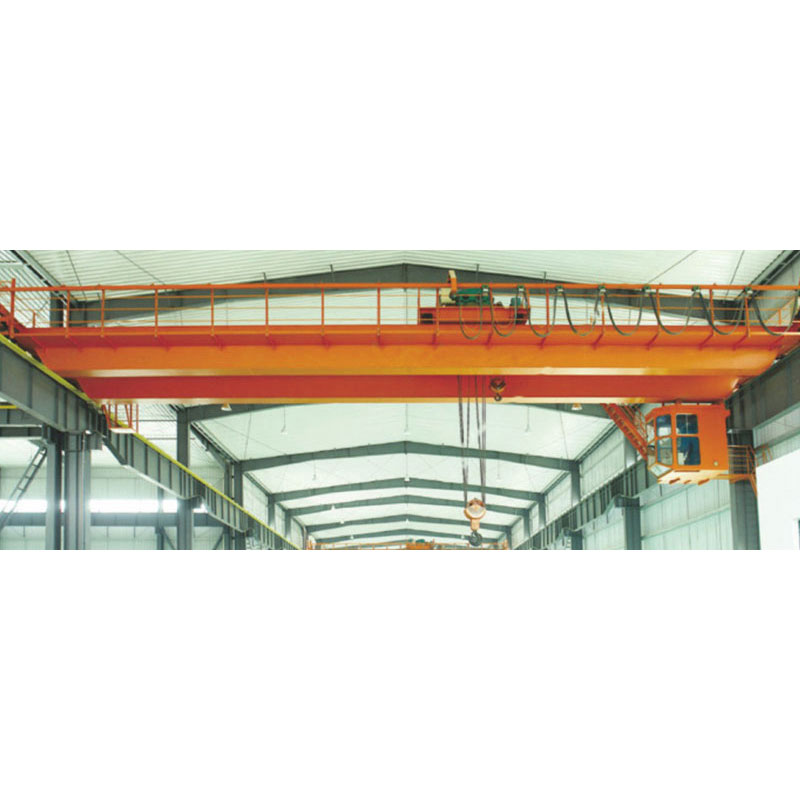

The double girder eot crane is a kind of large capacity crane. Comparing with the single girder, the double girder crane is specially used to meet the requirements of larger capacity. Just like the single girder crane, it is a kind of standard crane which can be widely used in various place like factories, workshop, plant and warehouse. The double girder overhead crane can be installed on the rails on the bases of building columns. The double rail type trolley runs along parallel girders suitable for large capacity cranes, and also can utilize space below ceiling rafters, and so a wider lifting range assured. Smooth traveling is obtained using a guide mechanism with side rollers, and the girder construction can be designed according to the rated load and span. Moreover, the shorter overran length of the end carriage and the double girder eot crane motor installation in optimum position allows for a more effective use of work space.
